Refractory MGO board SIP glass magnesium sulfate board for refractory square 12mm factory price

 MgO*Tech Magnesium Oxysulfate MGO Board MGO*TECH Board (usually called MGO Board) is a kind of mineral product that is produced in a series of chemical reactions under strict conditions by professional production techniques.Mission & Vision is based on Non-toxic for prefab house and enviro

Featured Products


MgO*Tech Magnesium Oxysulfate MGO Board
Fire Resistant Material MGO Board SIP Glass Magnesium Sulfate Board for Fireproof Place 12mm Factory Price
MGO*TECH Board (usually called MGO Board) is a kind of mineral product that is produced in a series of chemical reactions under strict conditions by professional production techniques.
Mission & Vision is based on Non-toxic for prefab house and environmental friendly for the Earth and fire-rated(Grade A1) for safety.
Application Fields mainly applied to prefab house as building materials. like floor,  interior&exterior wall, partitions, ceiling and so on.
It also can be used as a substrate for decorative materials such as HPL board, Sandwich panel and so on.


Our advantages
1. Professional export team: full of experience to handle the export, transportation, files, and documents.
2. Experienced engineer and workers for production: Our general engineer has over 18years experience in MGO board field, proficient in the process from  No.1 generation MGO board production until the newest MGO board machine design/manufacturing.
3. Strict production procedures and automatic machine to ensure the quality of our products.
4. The climate in the North of China is better for producing the MgO*Tech board that the board is more stable and
chemical reaction is more complete.
5. We have the nearest raw materials and our team studied the sulfate in the chemical plant before.
    So we can get the best raw materials and the cheaper the cost.
Fire Resistant Material MGO Board SIP Glass Magnesium Sulfate Board for Fireproof Place 12mm Factory Price

Category
1. MGOTECK Magnesium FirePro Sulfate MgO Subfloor Board

Fire Resistant Material MGO Board SIP Glass Magnesium Sulfate Board for Fireproof Place 12mm Factory Price
MGOTECK Magnesium FirePro Sulfate MgO Subfloor Board gives high performance in bending strength, and fire ratings with China the most advanced MgSO4 chloride free sulfate technology. It is lightweight and high strength. The Non-combustible floor board is resistant to fire, water, mildew, insulate to sound and heat. It offers a superior and price competitive, environmentally friendly alternative to fiber cement and plasterboard products.

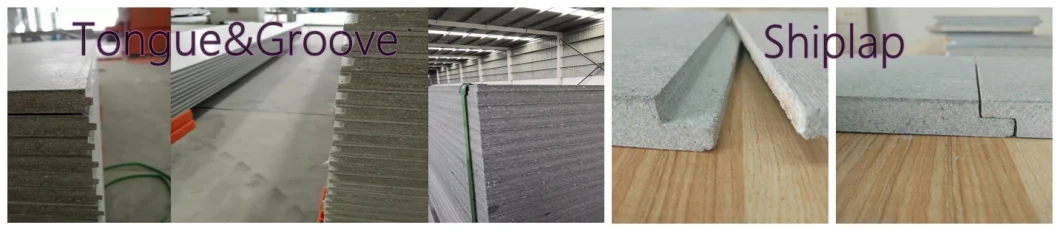

MGOTECK Magnesium FirePro Sulfate MgO Subfloor Board is with Tongue & Groove (T&G)  or Ship Lap edges for substrate floor application. It could be internal & external. It is with a neat secure surface. It could be designed primarily as a substrate for most finishes such as tiles, vinyl, carpet or timber. It could also suitable as a finished surface with itself.

MGOTECK Magnesium FirePro Sulfate MgO Subfloor Board has opened the excellent quality of Tongue & Groove edge which could offer an extensive range of floor options and solutions. This Magnesium Oxide Subfloor Boarding system can be used in a variety of applications, whether it is a new building e.g. offices, shops, transportable, kit homes, or additions and renovations to an existing building. It is ideal for: sub-floors; suspended floors and areas where moisture resistance is necessary. It is also an excellent product to receive a wide variety of floor coverings.


2. MGOTECH MgORC Magnesium Oxide Fire Rated Render Carrier Board

Fire Resistant Material MGO Board SIP Glass Magnesium Sulfate Board for Fireproof Place 12mm Factory Price

MGOTECH MgORC Magnesium Oxide Fire Rated Render Carrier Board is a medium density MgO board which is embedded with 2-4 layers high tensile glass fiber meshes layers to achieve all-around outstanding mechanical properties power for fire-rated wallboard. It is EN13501-1 A1 non-combustible, which has a low environmental impact and provides a very stable substrate to combine with various surface finishes for the construction industry where have the fire-resistant request. We have two formula for this model. One is the magnesium sulfate oxide which is totally chlorine-free and we can issue the Intertek test report for clients and the market.
Another one is the chlorine magnesium oxide formula  All the bending strength is 14Mpa.

MGOTECH MgORC Magnesium Oxide Fire Rated Render Carrier Board is a more environmentally-friendly material than some other more traditional building materials. The production of MgO is energy efficient and produces few greenhouse gases. This is a potential factor in the increasing popularity of the material. It is slightly absorptive, meaning that it is possible to paint and bond to the surface.

As a new type of magnesium oxysulfate fireproof substrate board that is composed of magnesium oxide, magnesium sulfate, water, and modifiers, in a four-part elemental mix based on our patented technological processes. The main difference between our boards and existing magnesium oxychloride fire protection boards is that due to the differences in chemical composition. Our boards fundamentally solve the issue of dampening and efflorescence associated with magnesium-based types of cement. Moreover, due to this different chemical composition, our boards will also not produce harmful gases to human under any condition. During the four-part elemental mix formulation process, lightweight aggregates such as wood chips are added as a filler, while fiberglass cloth is used as the framework. This entire process is completed via an automatic production line.

 MGOTECH MgORC Magnesium Oxide Fire Rated Render Carrier Board is a high-performance and non-combustible MgO sulfate board. And also this magnesium oxide board also can be called for Magnesium glass fiber gypsum board in brief as MgSO4 Panels. It is superior to any traditional concrete, drywall, gypsum board in the market. It feathers high-impact that is very suitable for exterior & interior & ceilings & SIPs & modular Wall panels constructions. It obviously improves & enhance its fire resistance, acoustic and thermal insulation performance and enjoys high impact strength to give more durability, more resistance to moisture, mold, and mildew.
Also, our panels can be painted, render on-site or off-site to provide more beautiful surface conditions.

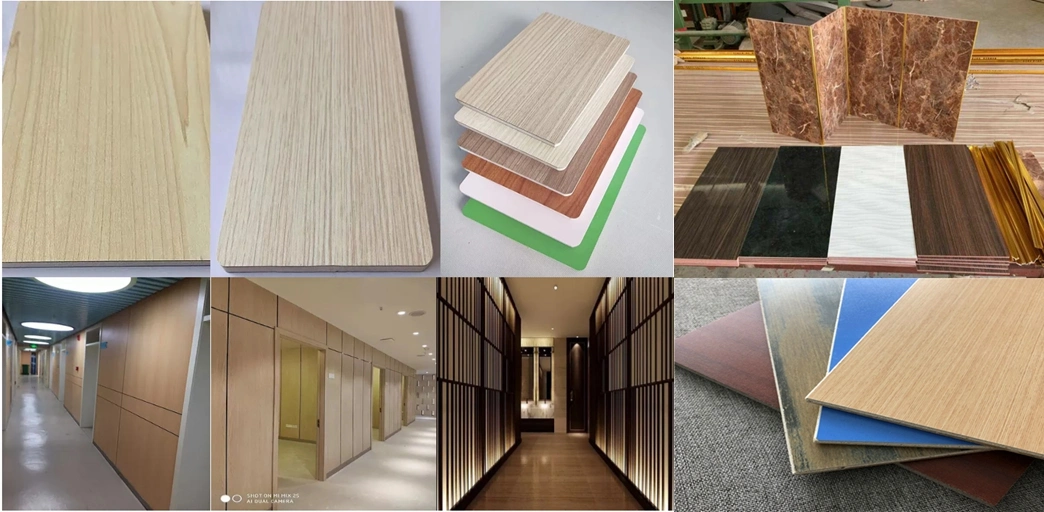

3. MGOTECH Decorative FireProof Magnesium Oxide Laminated Wall Board
Fire Resistant Material MGO Board SIP Glass Magnesium Sulfate Board for Fireproof Place 12mm Factory Price


Class A fire-proof plate developed by MGOTECH is green and ecological fire-proof building material. With non-combustible inorganic materials as its core materials and fire-proof plate coated with fluorocarbon or polyester on its surface a protective layer, it is compounded by advanced and unique technology. It is also a Grade A non-combustible, waterproof, anti-mildew, anti-earthquake, and thermal insulation green environmental protection plate in building materials currently. The product has been widely used in various building decoration fields, with its excellent fire resistance and physical properties, especially in fire-proof grade and peel strength.

4. MGOTECH MgO SIP Panel
Fire Resistant Material MGO Board SIP Glass Magnesium Sulfate Board for Fireproof Place 12mm Factory Price


Magnesium Oxide Structural Insulated Panels - MgO SIPS - is an advanced method of construction, offering superior insulation, structural strength and air-tightness over traditional construction methods or systems. MgO SIP panels are used in floors, walls, and roofs for residential, industrial, educational and commercial applications, providing ecologically friendly and energy efficient buildings.

MgO SIP technology has been developed around composite (or sandwich) panel techniques, creating a product with excellent structural and thermal characteristics.

MGOTECH structural insulated panels are the next generation of MGO SIPs Panels. Their fire rating is much better than traditional fiber cement and SIP panels. Magnesium Oxide SIP panel skins come in the thickness of 6 mm to 30 mm. MGO SIPS insulated panels can be used for the walls in a basement. They are waterproofed with the same methods and materials that are used to waterproof concrete walls in a basement.

One of the benefits of MGO SIPS insulated panels is that they are a healthy option due to the fact that they no organic solvents, heavy metals, asbestos, oils, or other toxic materials in them. For this reason, they were placed in the category of "green building materials." They also will not support the growth of black mold and they have a strong resistance to absorbing moisture. That is why they are perfect for humid and wet climates. Since they are strong, tough, and able to withstand impact, they are also ideal for regions that are prone to hurricanes.

When MGO Structural Insulated Panelsare used, there is no need to use drywall. That lowers the cost of a construction project as well as how long it will take. The outer surface of MgO SIPS can be painted or coated with a synthetic stucco finish, lap siding, brick veneer, stone, and many other appropriate exterior finishes. MGO SIPS have superior loading, fire ratings, and acoustic values when being compared to OSB and fire cement SIPS.


Main Performances Of Mgo board

A1 Non-Combustible Board
These boards are especially predestined for the implementation of various types of fire protection solutions. The boards are classified as A1 (non-combustible) board pursuant to European Standard EN 13501-1. Also, when it comes to providing a definition for non-combustibility we need look no further than the Building Regulations which defines it as: "Any product classified as non-combustible when tested in accordance with the requirements of BS476: Part 4: 1970 - Fire tests on building materials and structures - Non-combustibility test for materials, or: "Any product classified as Class A11 in accordance with BS EN 13501-1:2002 - Fire classification of construction products and building elements. Classification using data from reaction to fire tests when tested to BS EN ISO 1182:2002 Reaction to fire tests for building products - Non-combustibility test and BS EN ISO 1716:2002 Reaction to fire tests for building products-Determination of the gross calorific value." Magnesium oxide boards are essentially non combustible, with a flame spread of ZERO and a smoke development of ZERO, as measured by ASTM & EN standard. These properties make it highly effective either standing alone as a sheathing/underlayment or when laminated to other materials.

High Tensile and Impact Strength
It uses 2 -4 layers high tensile fiberglass meshes, which gives our MGOTECH Sulfate MgO Board model bending strength more than 22Mpa and the impact strength more than 38Mpa. This maintains a good racking strength on the board application. It provides a more durable wall construction material compared to traditional drywall to help prevent surface scuffs and abrasions as well as deeper indentations that require frequent cosmetic repair.

Breathable
Our MGOTECH Sulfate model of magnesium oxide boards is durable and fully breathable. The boards we recommend handle exposure to moisture extremely well. It has the natural ability to get in and out moisture, giving a heavier and more durable construction building. It takes the place of oriented strand board (OSB), plywood and gypsum sheetrock for all sheathing, wallboard, subfloor, and roof decking applications.

Non-formaldehyde and Non-Toxics
MGOTECH Sulfate MgO board contains no nasty chemicals, no gypsum, no cement-based content, no formaldehyde. 100% sustainable, 100% compostable, Co2 negative, vapor permeable. And does, not off-gas. It is ideal for chemically sensitive people.

Moisture/Water Resistant
MGOTECH Sulfate MgO Fire board is water-resistant and virtually impervious to water, not more than 0,34% weight Magnesia cement used for the production is insoluble in water and prevents delamination of the board as well as swelling after long-term exposure to water. lt retains its excellent dimensional stability, even in damp and humid conditions due to it is chloride free and will have no water happens from its' inner side. It can be applied at an early stage of the construction program, even before the building is weather tight. It is suitable for semi-exposed applications and can be left undecorated.

Acoustic Performance
MGOTECH Sulfate MgO Fire board is characterized by excellent acoustic and thermal insulation. It can be successfully used in combination with modern insulation materials (insulant, construction membrane) for exterior decoration of the building at quite low values of heat conductivity (0.0186 W/mK)) and acoustic transmission (30 DB).

Dimensional Stability
This MGOTECH Sulfate Magnesium Oxide Board has excellent dimensional stability under heat and in severe moisture environments. It also has a small expansion rate. Boards are suitable for most industrial applications due to good impact resistance. Our board is a porous material of sponge-like texture. Humidity does not fill completely in its pores leaving some space for expansion when being frozen. Due to this, it does not change its inner structure when being frozen. Dimensional stability of MgO board is 50 cycles in freeze/thaw and the loss of mechanical strength is only 0.5% (at the allowable of 18%).

Efficient Cutting & Fastening Method
MGOTECH Sulfate Magnesium Oxide Board is easy to install, it is simple to cut, drill, shape and fixed. It can be worked in the same way as timber products with no special tools required, and it is also maintenance-friendly. Our Multi-Support SS model of MgO board will work best with carbide tools, resulting in clean square cuts that will provide higher-quality installations. Circular saws including table saws work best. The boards can be scored and snapped using disposable knives that can cut through the fiberglass mesh from the smooth side. Edges can be routed flush or to create shapes and patterns using carbide cutters. When using saws like the hand electric saw with precision depth adjustment, sheets can be cut directly off the pile without marking the sheet below, which contribute to fast and accurate work.

The cuts are smooth and easy with conventional carbide-tipped circular saw blades and that ordinary bimetal jigsaw and multi­tool blades work fine for cutting around penetrations. And the crew fastened the siding with pneumatic roof nailers, and, it can also be fastened with high-quality screws (conventional black drywall screws sometimes snap off), framing nails, and siding nails. It is better than fiber cement to cut because the dust wasn't as irritating and the composition is easier on cutting tools. But as with cutting any materials that make dust, all workers should be protected from the dust by using a vacuum, blowers, breeze, or dust masks.

Environmental Friendly & Green Building Board
Unlike Portland Cement-based boards and pours, MGOTECH Sulfate Magnesium Oxide Board contains no hazardous components such as crystalline silica and hexavalent chromium, and the dust is not an irritant. In contrast cases of extreme exposure to Portland-based products, the results can lead to adverse health outcomes and worse. Unlike Portland cement-based boards, there are no environmental concerns from extremely high energy consumption in manufacturing cement, and the related air pollution, such as the release of dioxin, NOx, SO2, and particulates. In contrast, the production of Portland cement contributes to about 10 % of world carbon dioxide emission and is the most energy-intensive industry in the world.

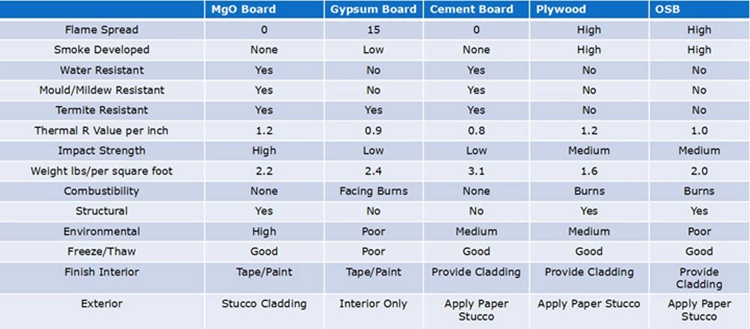

Comparison Sheet

MGO board offers superior performance in every category when compared to traditional wood, gypsum and cement based products.
Fire Resistant Material MGO Board SIP Glass Magnesium Sulfate Board for Fireproof Place 12mm Factory Price



Application For Prefab HouseFire Resistant Material MGO Board SIP Glass Magnesium Sulfate Board for Fireproof Place 12mm Factory Price
